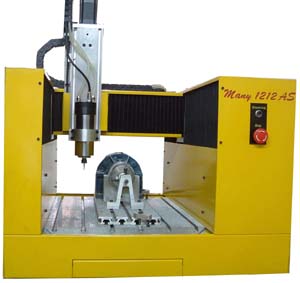

1212AS CNC Router Machine (12" x 12" x 6")
*Optional 800W 40,000rpm High Speed Spindle
*Optional Rotate axis
New 1818AS with new motion control
2424AS_ATC (with Auto Tool Changer) (24" x 24" x 8")
1818AS Specification
|
Table Size (mm) |
390 x 550 (1212AS) 700 x 610 (1818AS) |
| Working Area (mm) | 300 x 300 x 150 (1212AS) 450 x 450 x 200 (1818AS) |
| Machine Size (mm) | 760 x 710 x 900 (1212AS) 725 x 814 x 900 (1818AS) |
| Machine frame | Cast Iron |
| Table Surface | T-Slot Iron |
| Control Type | AC Servo Drive |
| Motion System | XYZ axis: Ball Linear; Ball Screw |
| Drive Motor | Japan Sanyo Denki AC Servo Motor |
| Max Speed | 12000mm/min |
| Spindle Motor |
1.5KW
24,000rpm water cooling inverter spindle
Optional 2.2kw 24,000rpm water cooling inverter spindle |
| Max Tool Shaft Diameter | 10mm |
| Position Accuracy | +/- 0.018mm |
| Resolution | 0.004mm |
| Power Requirements | 220V 50-60Hz |
| Machining Material | Wood, Plastic, Acrylic, Aluminum, Brass, Magnesium, Steel... |
| Software | EasyCut V2 Software |
| System Requirements |
Windows 2000/XP/Vista |
