EasyCut PC Based CNC Motion Control
&
EasyCut V2 Software
EasyCut PC Base CNC motion controller is for stepper motor or AC servo with cheap price.
Use several MCU to handling different data.Two MCU get and send commands alternately at the same time. So it can get high effect, more smoothly and more stabilize.
Look Ahead Control can make the motion smooth and fast.
Suitable for router/engraving/plasma machine.
New MC4 EasyCut Motion Control - 4 axis motion control
MC4 with case
MC4 without case
4 axis motion controller for stepper/servo motor is US$998 (include EasyCut V2 control software)
Probe scanner is US$280
3D Probe Scanning
Automatic less the probe diameter after scanning.
Automate Speed Control
Automate slow down the speed when the corner is equal or less than 90 degree. That can avoid to crashing the machine.
Change Feed Rate
Don't need to pause the machine. You can change the cutting speed (10%-300%)while the machine is running.

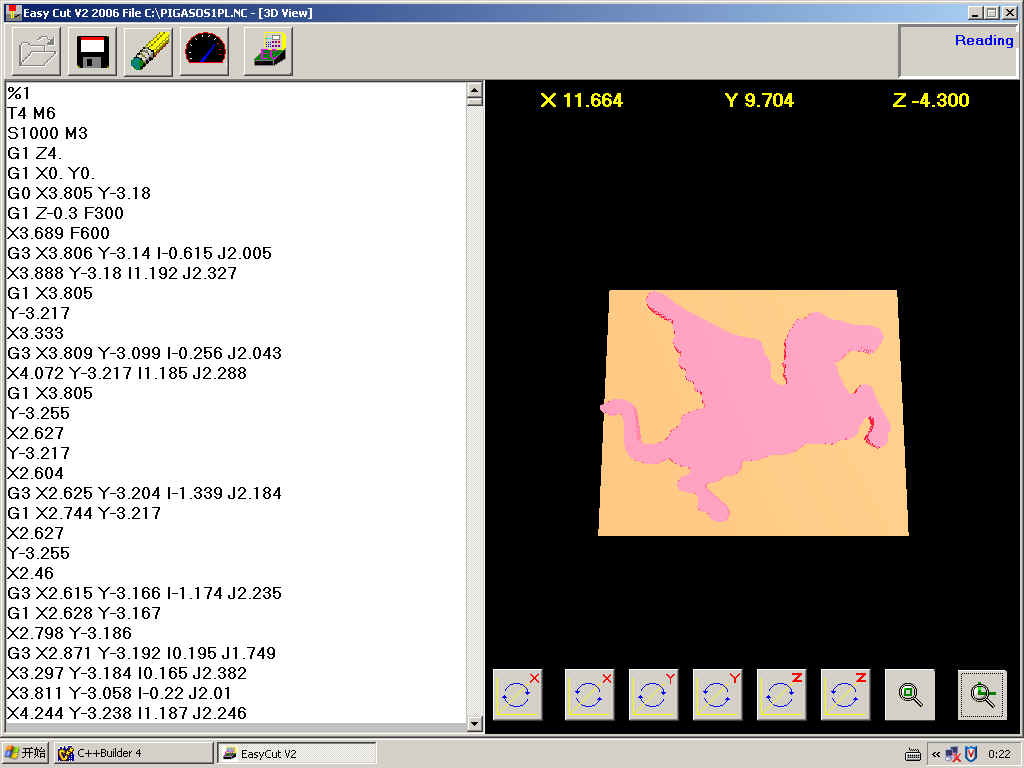

3D Toolpath Simulation
Display the actually 3D solid mold before machining.That can let you know the machining result.
Support Tool Changer
Even if without ATC system, just change the tool by hand, it will automate measure the tool and continue the job.
Easy to change the setting
EasyCut MC4 Motion Control Specification
 | 3 axis/4 axis stepper/servo PC base CNC control |
| Com port communicate (56k) |
| 4 x 20 LCD position display |
| Easy to use JOG and Hand Wheel to set the position |
| Look Ahead Control can make the machining surface very smooth |
| The motion will not be affected by the revolution of Windows |
| Support ISO standard G Code file (S, F, G0, G1, G2, G3, G21, M2, M3, M5, M6, M30) |
| Unlimited program size |
| Ability to transfer DXF and PLT file to GM code |
| Advance read 30 pcs commands |
| 4 axes simultaneous |
| Pulse output up to 56k/sec |
| Each axis output frequency max range is +2,147,683,648 |
| Automatically control the speed at the corner |
| Automatically control the speed in the straight line |
| Automate Tool Measure |
| Automatically Save/Load Work Zero |
| Automatically reduce the Probe diameter after scanning |
| Spindle On/Off is controlled by the program. Also can turn on the spindle for JOG moving. |
| Change cutting speed from 10% to 300% while the machine is running |
| Support ATC (Auto Tool Changer) |
| Possible to select the start position after press Stop |
| 3D Toolpath simulation |
| Special for point machining, it can run smoothly even each distance less than 0.05mm |
| Limit switch on XYZA axis |
| Runs under Windows 2000/XP/Vista |
| Including the software to control the machine |
| No external PLC hardware |
| Don't need to use Visual Basic, Visual C, Borland C++ |
Optional motor control
| USA Gecko Micro Stepper Drive for Stepper Motors |
| Japan Sanyo Denki AC servo control for Sanyo Denki AC servo motor |
Computer Requirements
| IBM/Intel/Pentium/AMD/Acer Desktop computer or laptop |
| Windows 2000/XP/Vista |
| 8 x CD ROM or above |
| COM Port or USB to Com |
EasyCut 3D Probe Scanner Control System
Automatically less probe diameter after scanning.
Graphical icon easy to use.
Don't need to create the complex drawing, save time and save money.
Ability export to 3D DXF file to your CAD/CAM system for editing (such as ArtCam Pro, CopyCad, PowerMill, RhinoCam, VisualMill, madCad, Type3...)
Easily to create the rough machining and finish machining toolpath program in CAM software.
Automatic 3D part display while it is scanning.
Full 3D solid simulation of your model will display.
Edit scan file and create toolpath file in ArtCamPro
Scan and Scale Machining
Optional create toolpath file in RhinoCam
